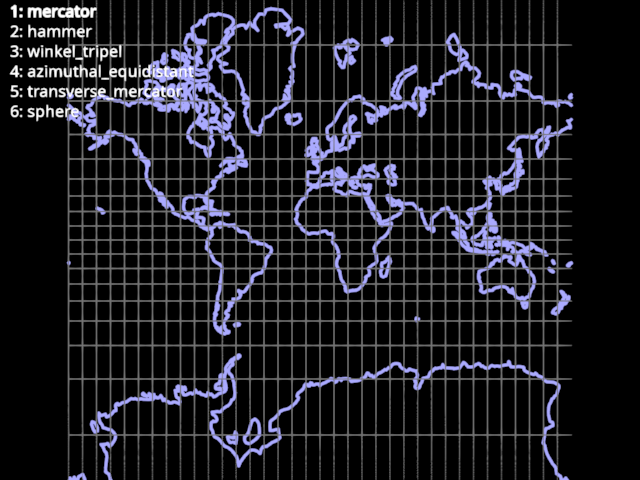

World map projections
Example showing a world map with different projections.
The idea is that you can switch between different map projections like Mercator, Hammer, etc, and also 3D spherical model.
The cool thing is that you can express all your data in lat/lon, and it will be nicely projected together.
Note
To run this example, you need a model from the source repo’s example folder. If you are running this example from a local copy of the code (dev install) no further actions are needed. Otherwise, you may have to replace the path below to point to the location of the model.
import time
import numpy as np
from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
# Load public domain coastline data from naturalearthdata.com.
# Original source: https://naturalearth.s3.amazonaws.com/110m_physical/ne_110m_coastline.zip
# Transformed to a numpy array using geopandas and then stored as npz
lonlat = np.load(model_dir / "coastlines.npz")["lonlat"]
# The names of the transforms in this example.
# For each transform, there is a corresponding shader in the WGSL code below.
transform_names = [
"mercator",
"hammer",
"winkel_tripel",
"azimuthal_equidistant",
"transverse_mercator",
"sphere",
]
WGSL = """
fn mercator_projection(pos: vec3f) -> vec3f {
// Source: Wikipedia - this is web-mercator
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
let max_lat: f32 = 1.4844222; // = 2*atan(e**pi)-pi/2 ≈ 85°
let clamped_lat = clamp(lat, -max_lat, max_lat);
let y = log(tan(0.25 * PI + 0.5 * clamped_lat));
return vec3f(lon, y, pos.z);
}
fn hammer_projection(pos: vec3f) -> vec3f {
// Source: Glumpy
let B = 2.0;
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
let cos_lat = cos(lat);
let sin_lat = sin(lat);
let cos_lon = cos(lon/B);
let sin_lon = sin(lon/B);
let d = sqrt(1.0 + cos_lat * cos_lon);
let x = (B * 1.4844222 * cos_lat * sin_lon) / d;
let y = (1.4844222 * sin_lat) / d;
return vec3f(x, y, pos.z);
}
fn winkel_tripel_projection(pos: vec3f) -> vec3f {
// Source: Wikipedia
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
let x1 = lon * cos(lat / 2.0);
let y1 = lat;
let alpha = acos(cos(lat) * cos(lon / 2.0));
let sinc = select(1.0, sin(alpha) / alpha, alpha > 1e-6);
let x2 = 2.0 * cos(lat) * sin(lon / 2.0) / sinc;
let y2 = sin(lat) / sinc;
let x = 0.5 * (x1 + x2);
let y = 0.5 * (y1 + y2);
return vec3f(x, y, pos.z);
}
fn azimuthal_equidistant_projection(pos: vec3f) -> vec3f {
// Source: ChatGTP
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
let sin_lat = sin(lat);
let cos_lat = cos(lat);
let c = (3.14159265359 * 0.5) - lat;
let k = c / sin(c);
let x = k * cos_lat * sin(lon);
let y = -k * cos_lat * cos(lon);
return vec3f(x, y, pos.z);
}
const k0 = 0.75;
const a = 1.00;
fn cosh(x: f32) -> f32 { return 0.5 * (exp(x)+exp(-x)); }
fn sinh(x: f32) -> f32 { return 0.5 * (exp(x)-exp(-x)); }
fn nonlin_forward(lambda: f32, phi: f32) -> vec2f {
let x = 0.5*k0*log((1.0+sin(lambda)*cos(phi)) / (1.0 - sin(lambda)*cos(phi)));
let y = k0*a*atan2(tan(phi), cos(lambda));
return vec2f(x, y);
}
fn transverse_mercator_projection(pos: vec3f) -> vec3f {
// Source: Glumpy
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
return vec3f(nonlin_forward(lon, lat), pos.z);
}
fn sphere_projection(pos: vec3f) -> vec3f {
let lon = pos.x * PI / 180;
let lat = pos.y * PI / 180;
let elevation = pos.z;
let clat = cos(lat);
//let radius = 6367444.0 + elevation; // meters
let radius = 2.0 + elevation; // relative units
return vec3f(
radius * clat * cos(lon),
radius * clat * sin(lon),
radius * sin(lat),
);
}
// Combining the above
fn nonlinear_transform(pos: vec3f) -> vec3f {
return (
COMBINE
);
}
""".replace(
"COMBINE",
" + ".join(
f"{name}_projection(pos) * u_wobject.{name}_factor" for name in transform_names
),
)
class MapProjectedPoints(gfx.Points):
"""Points subclass with support for multiple map transforms, and
the ability to smoothly transition between them, using a uniform
buffer with factors for each transform.
"""
uniform_type = dict(
gfx.Mesh.uniform_type,
**{n + "_factor": "f4" for n in transform_names},
)
transition_time = 2.0 # seconds
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.nonlinear_transform = WGSL
self._old_factors = {n: 0.0 for n in transform_names}
self._new_factors = {n: 0.0 for n in transform_names}
self.uniform_buffer.data["mercator_factor"] = 1.0
self._set_time = 0
def _update_object(self):
super()._update_object()
time_delta = time.perf_counter() - self._set_time
f = min(1.0, time_delta / self.transition_time)
for name in transform_names:
v1 = self._old_factors[name]
v2 = self._new_factors[name]
self.uniform_buffer.data[name + "_factor"] = (1 - f) * v1 + f * v2
self.uniform_buffer.update_full()
def select_projection(self, name):
assert name in transform_names
self._old_factors = {
n: self.uniform_buffer.data[n + "_factor"] for n in transform_names
}
self._new_factors = {n: 0.0 for n in transform_names}
self._new_factors[name] = 1.0
self._set_time = time.perf_counter()
# Setup visuzaliation
canvas = RenderCanvas(update_mode="continuous")
renderer = gfx.WgpuRenderer(canvas)
scene = gfx.Scene()
scene.add(gfx.Background.from_color("#000"))
camera = gfx.OrthographicCamera(maintain_aspect=True)
camera.show_object((0, 0, 0, 3), up=(0, 0, 1))
controller = gfx.OrbitController(camera, register_events=renderer)
# Add points for the lon/lat lines
density = 10
point_positions1 = []
for lat in range(-90, 90, 10):
x = np.linspace(-180, 180, 360 * density, dtype=np.float32)
y = np.full_like(x, lat)
point_positions1.append(np.column_stack([x, y, np.zeros_like(x)]))
for lon in range(-180, 180, 10):
y = np.linspace(-90, 90, 180 * density, dtype=np.float32)
x = np.full_like(y, lon)
point_positions1.append(np.column_stack([x, y, np.zeros_like(x)]))
point_positions1 = np.vstack(point_positions1)
points1 = MapProjectedPoints(
gfx.Geometry(positions=point_positions1),
gfx.PointsMaterial(size=1.0, color="#777"),
)
scene.add(points1)
# Add points for the coastlines. Turn line-segments into pointset.
point_positions2 = []
for i in range(lonlat.shape[0] - 1):
p1, p2 = lonlat[i], lonlat[i + 1]
if np.isnan(p1[0]) or np.isnan(p2[0]):
continue
dist = np.linalg.norm(p2 - p1)
n = int(np.ceil(dist * density))
x = np.linspace(p1[0], p2[0], n, np.float32)
y = np.linspace(p1[1], p2[1], n, np.float32)
point_positions2.append(np.column_stack([x, y, np.zeros_like(x)]))
point_positions2 = np.vstack(point_positions2)
points2 = MapProjectedPoints(
gfx.Geometry(positions=point_positions2),
gfx.PointsMaterial(size=3.0, color="#aaf"),
)
scene.add(points2)
# A scene for the text overlay
screen_scene = gfx.Scene()
screen_camera = gfx.ScreenCoordsCamera(invert_y=True)
for i, name in enumerate(transform_names):
t = gfx.Text(
text=f"{i + 1}: {name}", screen_space=True, font_size=16, anchor="top-left"
)
t.local.position = 10, i * 20, 0
screen_scene.add(t)
# Event handling
@canvas.add_event_handler("pointer_move")
def on_move(event):
if event["x"] < 200 and event["y"] < len(transform_names) * 20:
canvas.set_cursor("pointer")
else:
canvas.set_cursor("default")
@canvas.add_event_handler("pointer_down")
def on_click(event):
if event["x"] < 200:
index = int(event["y"] / 20)
set_projection(index)
@canvas.add_event_handler("key_down")
def on_key(event):
if event["key"] in "123456789":
index = int(event["key"]) - 1
set_projection(index)
def set_projection(index):
if index < len(transform_names):
transform = transform_names[index]
for i, name in enumerate(transform_names):
screen_scene.children[i].set_text(f"{i + 1}: {name}")
screen_scene.children[index].set_markdown(f"**{index + 1}: {transform}**")
for ob in [points1, points2]:
ob.select_projection(transform)
canvas.request_draw()
set_projection(0)
def animate():
renderer.render(scene, camera, flush=False)
renderer.render(screen_scene, screen_camera)
if __name__ == "__main__":
canvas.request_draw(animate)
loop.run()
Total running time of the script: (0 minutes 0.419 seconds)
