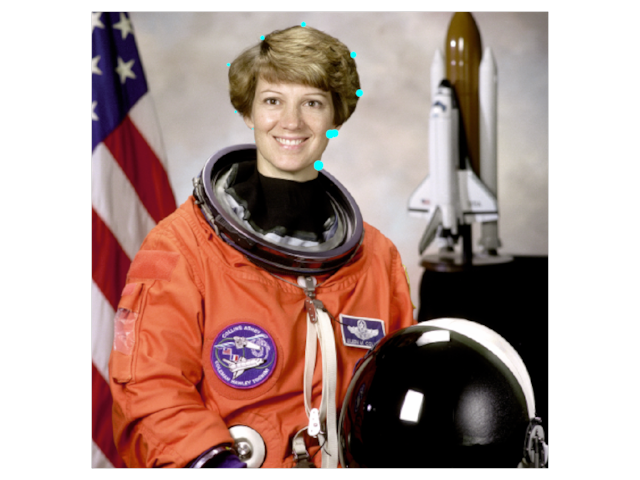

Image with Points Overlaid

Show an image with points overlaid.

import imageio.v3 as iio
from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
import numpy as np

canvas = RenderCanvas()
renderer = gfx.renderers.WgpuRenderer(canvas)
scene = gfx.Scene()

# add image

im = iio.imread("imageio:astronaut.png")

image = gfx.Image(
    gfx.Geometry(grid=gfx.Texture(im, dim=2)),
    gfx.ImageBasicMaterial(clim=(0, 255)),
)
scene.add(image)

# add points

xx = [182, 180, 161, 153, 191, 237, 293, 300, 272, 267, 254]
yy = [145, 131, 112, 59, 29, 14, 48, 91, 136, 137, 172]
sizes = np.arange(1, len(xx) + 1, dtype=np.float32)

points = gfx.Points(
    gfx.Geometry(
        positions=[(x, y, 1) for x, y in zip(xx, yy, strict=True)],
        sizes=sizes,
    ),
    gfx.PointsMaterial(
        color=(0, 1, 1, 1),
        size=10,
        size_space="world",
        size_mode="vertex",
    ),
)
scene.add(points)

camera = gfx.PerspectiveCamera(0)
camera.local.scale_y = -1
camera.show_object(scene, match_aspect=True, scale=1.05)

controller = gfx.PanZoomController(camera, register_events=renderer)

if __name__ == "__main__":
    canvas.request_draw(lambda: renderer.render(scene, camera))
    loop.run()
