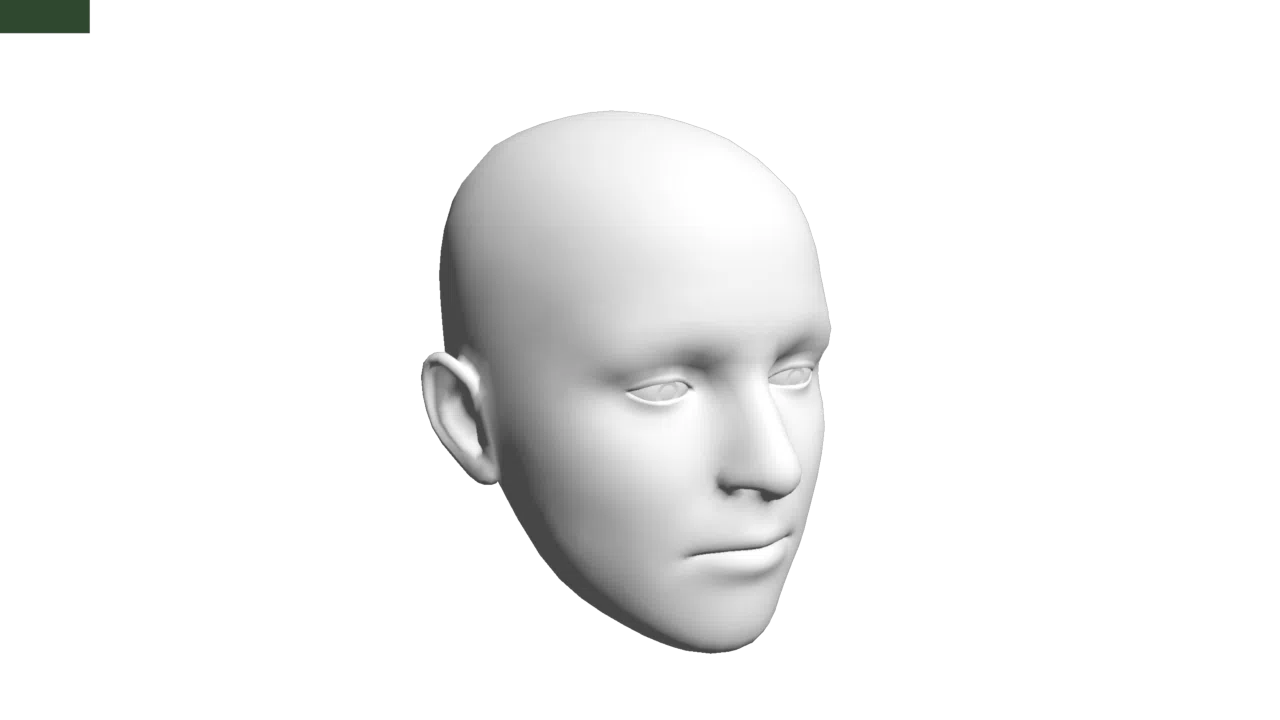

Facecap animation with morph targets

This example demonstrates how to animate a model with morph targets.

The model originates from Face Cap (https://www.bannaflak.com/face-cap/documentation.html#1.5) and has undergone format conversion. It includes morph targets for facial expressions, utilizing 52 blend shapes.

Note

To run this example, you need a model from the source repo’s example folder. If you are running this example from a local copy of the code (dev install) no further actions are needed. Otherwise, you may have to replace the path below to point to the location of the model.

import os
from pathlib import Path

try:
    # modify this line if your model is located elsewhere
    model_dir = Path(__file__).parents[1] / "data"
except NameError:
    # compatibility with sphinx-gallery
    model_dir = Path(os.getcwd()).parent / "data"

Once the path is set correctly, you can use the model as follows:

import time
import numpy as np
import pygfx as gfx
from scipy import interpolate
from wgpu.gui.auto import WgpuCanvas, run
from wgpu.utils.imgui import ImguiRenderer
from imgui_bundle import imgui

gltf_path = model_dir / "facecap.glb"

scene = gfx.Scene()

canvas = WgpuCanvas(size=(1280, 720), max_fps=-1, title="Facecap", vsync=False)

renderer = gfx.WgpuRenderer(canvas)
camera = gfx.PerspectiveCamera(45, 1280 / 720, depth_range=(0.1, 1000))

direct_light = gfx.DirectionalLight()
direct_light.local.position = (0, 1, 1)

scene.add(gfx.AmbientLight(), direct_light)

gltf = gfx.load_gltf(gltf_path)

model_obj = gltf.scene.children[1]

action_clip = gltf.animations[0]

scene.add(model_obj)

camera.show_object(model_obj, view_dir=(1.8, -0.8, -3), scale=1.2)

gfx.OrbitController(camera, register_events=renderer)


def update_track(track, time):
    target = track["target"]
    property = track["property"]
    values = track["values"]
    times = track["times"]
    interpolation = track["interpolation"]

    if time < times[0]:
        time = times[0]

    values = values.reshape(len(times), -1)

    # TODO: Use scipy to interpolate now, will use our own implementation later
    if interpolation == "LINEAR":
        if property == "rotation":
            # TODO: should use spherical linear interpolation instead
            cs = interpolate.interp1d(times, values, kind="linear", axis=0)
            value = cs(time)
            value = value / np.linalg.norm(value)  # normalize quaternion
        else:
            cs = interpolate.interp1d(times, values, kind="linear", axis=0)
            value = cs(time)

    elif interpolation == "CUBICSPLINE":
        cs = interpolate.interp1d(times, values, kind="cubic", axis=0)
        value = cs(time)
    elif interpolation == "STEP":
        cs = interpolate.interp1d(times, values, kind="previous", axis=0)
        value = cs(time)
    else:
        print("unknown interpolation", interpolation)

    if property == "scale":
        target.local.scale = value
    elif property == "translation":
        target.local.position = value
    elif property == "rotation":
        target.local.rotation = value
    elif property == "weights":
        target.morph_target_influences = value
        # target.morph_target_influences = np.ones_like(value)
    else:
        print("unknown property", property)


tracks = action_clip["tracks"]
gloabl_time = 0
last_time = time.perf_counter()

stats = gfx.Stats(viewport=renderer)

face_mesh = model_obj.children[0].children[0].children[2].children[0]
gui_renderer = ImguiRenderer(renderer.device, canvas)


def draw_imgui():
    imgui.new_frame()
    imgui.set_next_window_size((400, 0), imgui.Cond_.always)
    imgui.set_next_window_pos(
        (gui_renderer.backend.io.display_size.x - 400, 0), imgui.Cond_.always
    )
    imgui.set_next_item_open(True)
    is_expand, _ = imgui.begin(
        "Controls",
        None,
        flags=imgui.WindowFlags_.no_move | imgui.WindowFlags_.no_resize,
    )
    if is_expand:
        # imgui.begin_disabled()
        for i, name in enumerate(face_mesh.morph_target_names):
            imgui.slider_float(name, face_mesh.morph_target_influences[i], 0, 1)
        # imgui.end_disabled()

    imgui.end()
    imgui.end_frame()
    imgui.render()
    return imgui.get_draw_data()


gui_renderer.set_gui(draw_imgui)


def animate():
    global gloabl_time, last_time
    now = time.perf_counter()
    dt = now - last_time
    last_time = now
    gloabl_time += dt
    if gloabl_time > action_clip["duration"]:
        gloabl_time = 0

    for track in tracks:
        update_track(track, gloabl_time)

    with stats:
        renderer.render(scene, camera, flush=False)
    stats.render()
    gui_renderer.render()
    canvas.request_draw()


if __name__ == "__main__":
    renderer.request_draw(animate)
    run()
